DIFFUSERS
Overview
Jet nozzles are the preferred solution wherever the supply air has to travel large distances from the point of discharge to the occupied zone. It is possible to adapt the discharge angle, and consequently the direction of the airflow, to heating or cooling mode. The supply air to room air temperature difference may range from –12 to +20 K.

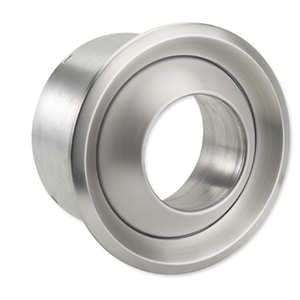

DUK : Jet diffuser with adjustable throw angle and special frame
DUK-M : Jet diffuser with adjustable throw angle and special frame with motor
Typical Applications
Adjustable and fixed jet nozzles achieve long throw distances and have excellent acoustic properties

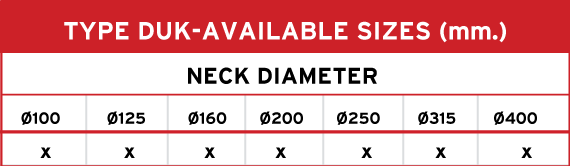

Nominal sizes: 100, 125, 160, 200, 250, 315 and 400 mm
Volume flow rate range: 15 to 400 l/s or 54 to 1440 m³/h
Visible parts made of aluminium
For variable and constant volume flows
Low sound power levels due to aerodynamically optimised nozzle contours
Discharge angle can be adjusted manually or with an actuator
Quick and easy to fix, concealed fixing
Construction Options
Material
Aluminium
Fixing
Screw
No Fixing
