DAMPERS
Overview
The blast dampers manufactured by GMCAIR. are designed to protect equipment and personnel against blasts and instantaneous pressure changes from industrial vapor cloud explosions. Typical applications are the protection of the air intake/exhaust openings and building vent openings, and for protection and exhaust in fire suppression systems (when coupled with our BD-200-HD fire resistant pressure relief damper). Typical building spaces are control & instrumentation rooms, and sub-stations. GMCAIR. blast dampers can be surface mounted to exterior walls and roof structures or duct mounted.
Features
Blast protection up to 3 bar and multiple blast load protection up to 1 bar.
ATEX certified for explosive atmospheres
AMCA certified pressure drop performance

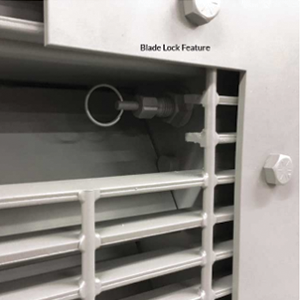

Blade lock feature to hold damper closed and protect against subsequent negative pressure waves, and flame fronts
Available in carbon steel with a zinc rich primer coating, galvanized steel, or stainless steel
Can be paired with BD-200-HD pressure relief damper to relieve building pressure, or to provide pressure relief during fire suppression system gas releas
Blast Dampers
