Overview
Multileaf dampers with gears can only have opposed action blades.
The internal gears transfer the synchronous rotational movement from the drive arm to the individual blades.

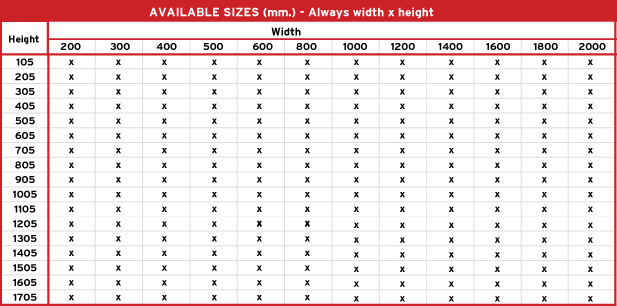

Standard blades width 100; min. flow resistance and noise; coupling and drive possibilities for all requirements. Available in all intermediate sizes and special executions like high strength corrosion-resistant construction.
Application

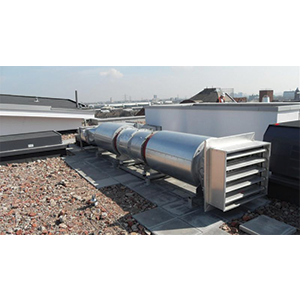

Rectangular volume control dampers are used for control of flow rate and pressure in ventilation ducts. Opposed blades in damper have aerodynamic structure that has the property of reducing the air friction. Flow rate is adjusted with actuator to OPEN - CLOSED
Material
All of the product casing and blades are manufactured from extruded aluminium profile.
Parts and characteristics

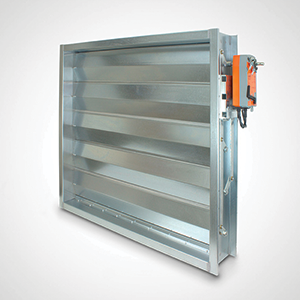

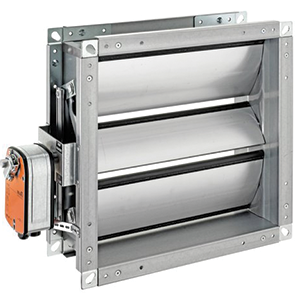

Ready-to-install shut-off damper
Blades with gears

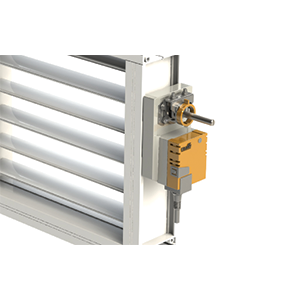

Drive arm
Quadrant stay with blade position indicator
Temperature resistant 0 – 90 °C
