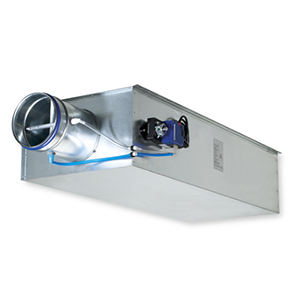

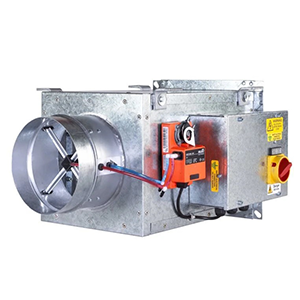

VAV terminal box for the supply air control in buildings with variable air volume systems and demanding acoustic requirements
- Highly effective integral attenuator
- Box style construction for the reduction of the airflow velocity
- Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
- Suitable for airflow velocities up to 13 m/s
- Closed blade air leakage to EN 1751, up to class 4
- Casing air leakage to EN 1751, class A
Typical Applications
- VAV terminal box for use in room air conditioning systems (HVAC systems)
- Also for unfavourable upstream conditions at low airflow velocities for supply air or exhaust air flow control in variable air volume systems
- Closed-loop volume flow control using an external power supply
- For controlling, restricting, or shutting off the airflow in air conditioning systems
Construction Options:
Material
- Galvanneal Sheet Steel
- Stainless Steel
- Aluminum
