Overview

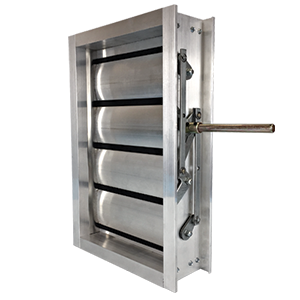

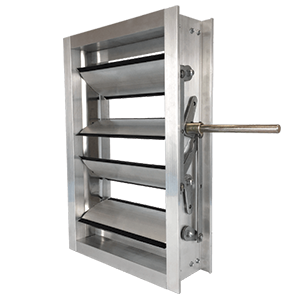

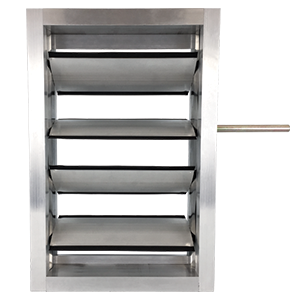

NCA offers several options for extruded aluminum control dampers for more corrosive environments and applications. The ACD (Aluminum Control Damper) is offered in a few different configurations of frame and blade widths in order to cover every application possible. The two numbers after the model string “ACD” represent the frame width (in inches) followed by the blade width (in inches) in that order. NCA also manufactures options for thermally insulating (see model ACD-56-I) as well as thermally broken (see models TBD) control dampers.
Product Features
-
Ultra low leakage with blade and jamb seals
-
Constructed of heavy duty extruded aluminum
-
Airfoil blades for lower pressure drop
-
Linkage concealed in jamb for low maintenance and to reduce air turbulence
Models
-
ACD-44 – 4” Frame, 4” Blades
-
ACD-54 – 5” Frame, 4” Blades
-
ACD-56 – 5” Frame, 6” Blades
-
TBD-B – Thermally Broken Blades
-
TBD-BF – Thermally Broke Blades and Frame
Options
-
Parallel or Opposed blade orientation available on all models
-
304 Stainless steel linkage and axles (ACD)
-
Wide variety of pneumatic or electric (24V, 120V, 230V) actuators that can be factory mounted or shipped loose
-
Square/rectangular, round or oval transitions
