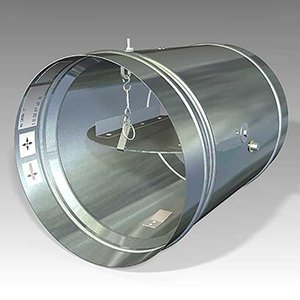

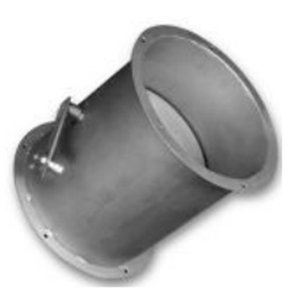

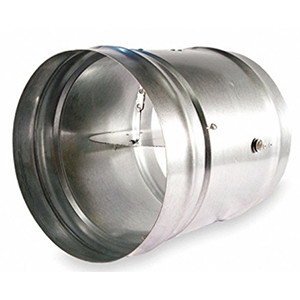

Round, Single Wing, Fusible Link Fire Damper

Overview

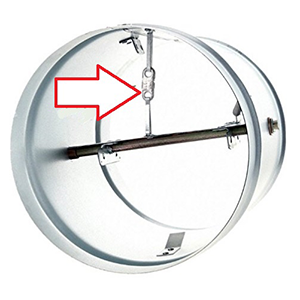

In the event of a fire, fire dampers shut automatically to prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments. In the event of a fire, the damper is triggered at 72 °C or at 95 °C (use in warm air ventilation systems) by a fusible link. The release mechanism is accessible and can be tested from the outside



Applications

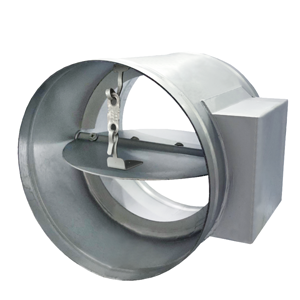

The spring return actuator enables the motorised opening and closing of the damper blade; it can be activated by the central BM. In the event of a fire, the damper is triggered thermoelectrically at 72 °C or 95 °C (use in warm air ventilation systems). As long as power is supplied to the actuator, the damper blade remains open. If the supply voltage fails, the damper closes (power off to close). Motorised fire dampers can be used to shut off ducts. The torque of each actuator is sufficient to open and close the damper blade even while the fan is running. The spring return actuator is fitted with limit switches that can be used for capturing the damper blade position.



Construction :



Start and stop handle:Zamak casting Outer structure and cover:1,5mm galvanized sheet Cover walls space:Air-conditioning plate of 2,5cm insulation wool and 50kg/m³ density.
