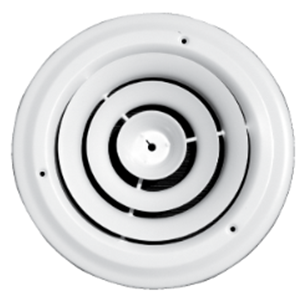

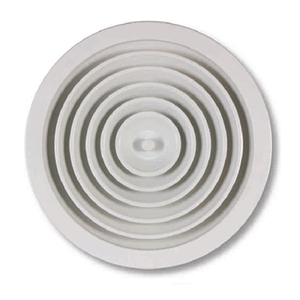

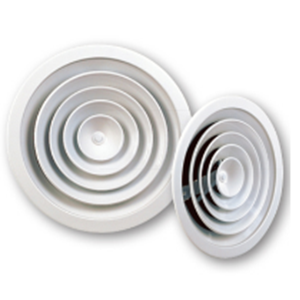

Round-Circular Ceiling Diffuser

Overview:

Round Ceiling Diffusers combine the visual appeal of a round cone design with maximum air diffusion efficiency. The round/circular ceiling diffusers offers adjustable airflow with a variety of different adjustment methods allowing for the perfect balance between performance and economy.

Ideally suited to exposed duct applications, Round/Circular Ceiling Diffusers provide a strong horizontal pattern, even without a ceiling present. Easily adjustable to provide both horizontal and vertical air patterns, performance of the YTA can be maximized for both heating, and cooling applications. Optional wire guards are available for grille protection in gymnasium applications..

Typical Applications

Ideally suited to exposed duct applications, Round Cone Diffusers provide a strong horizontal pattern, even without a ceiling present. Easily adjustable to provide both horizontal and vertical air patterns, performance of the RCD can be maximized for both heating, and cooling applications. Optional wire guards are available for grille protection in gymnasium applications.

Construction Options

• Material

  • Steel (RCD/RCDA/RCDE)

  • Aluminum (ARCD)

• Cones

  • 3 (RCDE)

  • 4 (RCD, RCDA, ARCD)

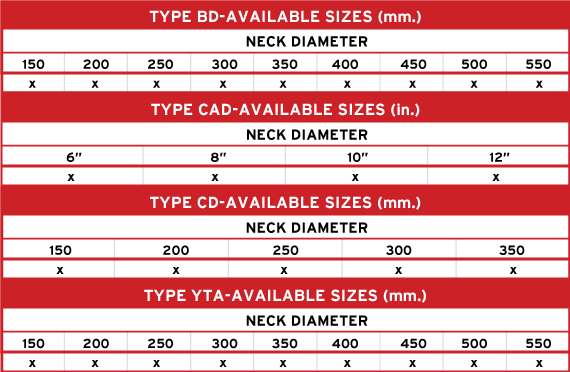

• Size

  • 6 in. to 36 in.

• Core Options

  • 2 position adjustable (RCDE)

  • 3 position adjustable (RCD/ARCD)

  • Fully adjustable (RCDA)

• Options

  • Wire guards

  • Damper

  • Equalizing grid

Product Features:

• Steel and Aluminum construction.

• Step-down diffuser rings deflect air stream 360 degrees.

• For ceiling air diffusion application.

• Round face.

• Bright White finish.

• Any colors you would like (4 weeks more)
