Overview

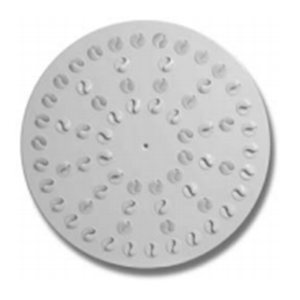

The Oyster Diffuser produces a high induction radial swirl pattern which promotes rapid temperature equalization and is suitable for VAV applications where high turndown is present. This product can be installed in standard 24 in. x 24 in - 595x595mm. lay-in ceiling grids or surface mounted using a plaster frame.
Typical Applications
Decorative swirl diffusers are used in areas with 2.6- 4 meter height spaces. By the help of structure and design, vortex motion occurs around an axis and this provides an effective air distribution.
Construction Options

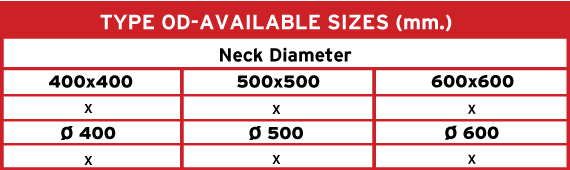

Available Sizes
24 in. x 24 in. US - 595x595mm EU
Mounting
Lay-in
Plaster frame surface mount
Face Pattern
Square slot array
Circular slot array
