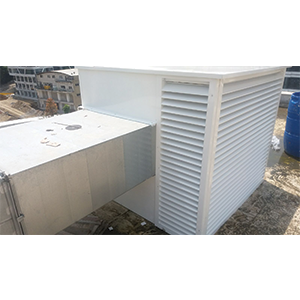

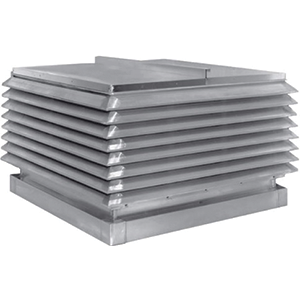

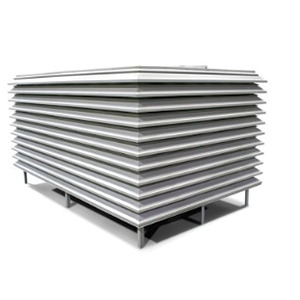

Box Corner Penthouse Louver

Overview

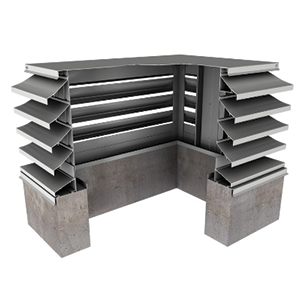

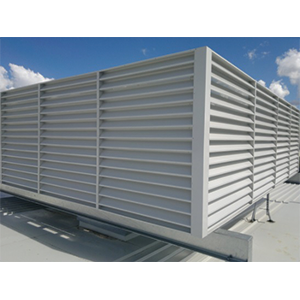

GMCAIR stationary louvers feature alloy 6063-T5 extruded aluminum blades. The louver features a “Z” blade profile in a 7cm deep assembly with the blades positioned at a 45° angle. This Z-blade louver is available with visible mullions that are joined with an extruded aluminum “I” connection, or continuous horizontal blades that utilize concealed blade braces and hidden vertical supports in place of jamb frames to present uninterrupted horizontal blade appearance.

Standard Features:

• "Z" blade profile

• Extruded aluminum blades and frames

• Integral perimeter caulking stop

• 1/2" x 1/2" (12 x 12) 16 gauge expanded aluminum bird screen without frame

• Mill finish

• Continuous blade sections (consealed supports)

Accessories

• Bird and insect screens

• Filters
