Insulated Volume Damper

Overview
Volume Control damper is widely used in heating, ventilation and air-conditioning applications (HVAC Damper)  in order to maintain or control the air volume inside the duct. These dampers facilitate the air flow to  each zone and each room to be controlled  during testing & commissioning. The blades may be parallel or opposed type depending on the requirement.

Volume control damper can be mounted either horizontally or vertically. However, care should be taken to mount the damper, by orienting the blades in the direction of the desired airflow. Gmcair provides several types of volume control dampers to choose from.

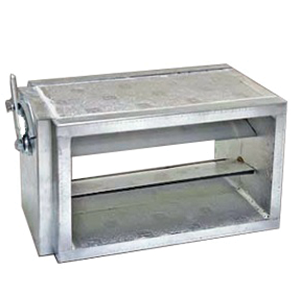

Gmcair Pre-Insulated volume control damper is made of high quality Pre-Insulated board for light weight applications. It is mainly used in places where pre-insulated ducts are used.

Description:

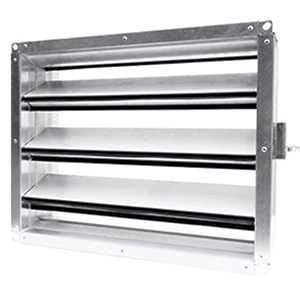

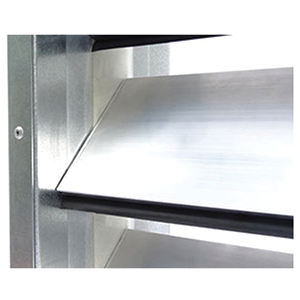

Damper rectangular, for pressure and volume flow control in HVAC-Systems, casing made of galvanized steel, depth 120 mm, double-walled, insulation 30 mm mineral wool, inside sealed with special foam and sliding foil, one-sided connection rod, coupled in same direction, bearing made of plastic, lamellas made of special aluminum-profiles, insulated with 50 mm mineral wool 60 kg / m3, horizontally arranged, one side rubber lip seal, lamella height 130 mm, physically free cross section approx. 54%, console for actuator, 90 mm deep, drive axle 10x10mm, reinforced design, air-tightness class 4 (casing class C) according to DIN EN 1751 and DIN 1946 T4, temperature-resistant from - 20 ° C to + 80 ° C, silicone-free, connection frame 30mm.
