Overview
Electrically or manually adjustable diffusers are required for cooling and heating large halls.
In order to provent draughts in the cooling mode, the supply air must largely be discharged horizontally from the diffuser. In heating mode, however, the diffuser must have high penetration depth, in order to achieve fast and efficient heating.

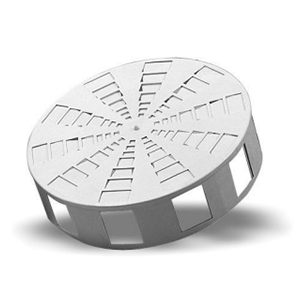

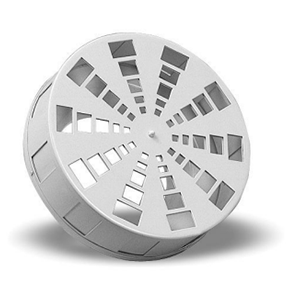

The diffuser type IKD meets both these requirements with either a manual or electric adjustment. It ensures optimum air distribution in cooling and heating modes.
IKD-S : Diffuser with adjustable air pattern
IKD-M : Diffuser with adjustable air pattern and motor
IKD-AY : Diffuser with adjustable air pattern and adjustable neck
IKD-PL : Diffuser with adjustable air pattern and plenum box
Typical Applications

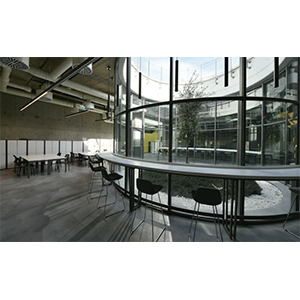

IKD type diffuser used for installation at heights of 4-15m in exhibition, sport and production halls.
IKD diffuser can be used for both heating and cooling applications. Round design with outher casing and adjustable inner basket to change air flow direction. Adjustment can be done manuel or with motor.
The free cross section is not changed when adjusting outlet direction,
Pressure loss and noise level remain the same in all diffuser settings.
Construction Options
Material
Galvanized sheet metal
Fixing
Screw
No Fixing
