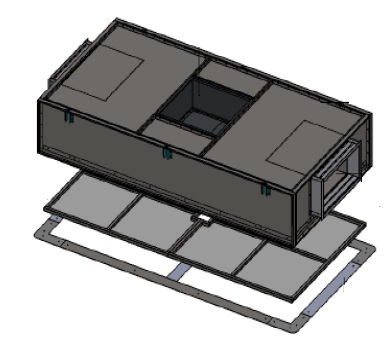

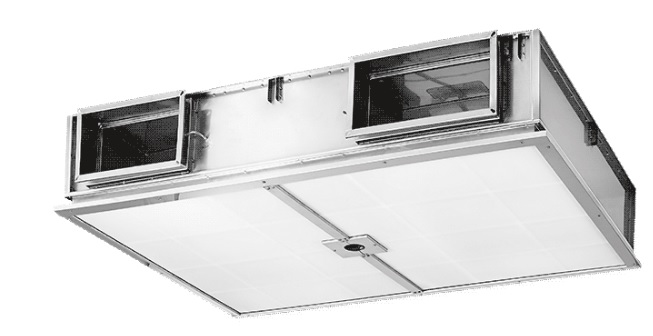

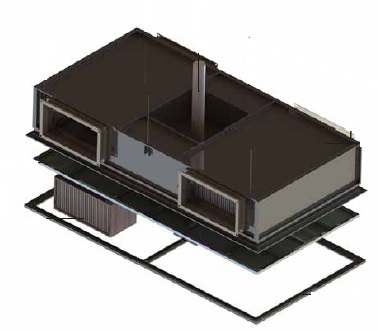

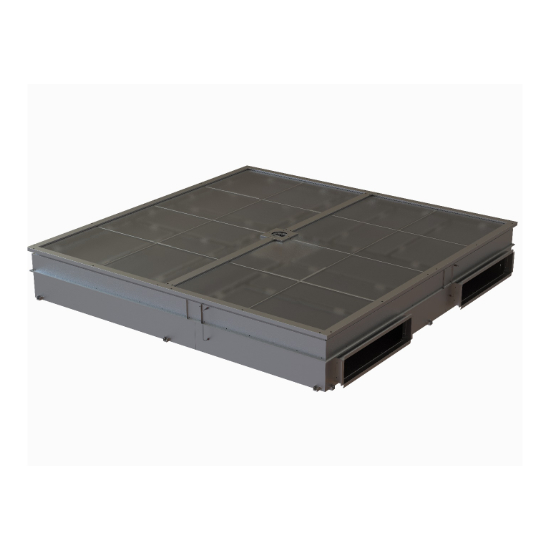

Overview:

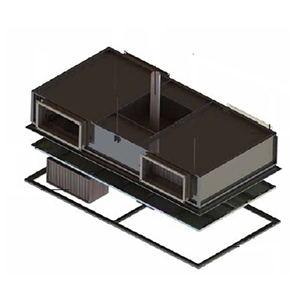

Laminar Flow Unit is designed for supplying fresh air with a stable, parallel

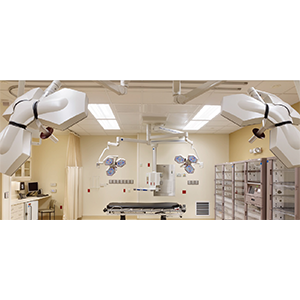

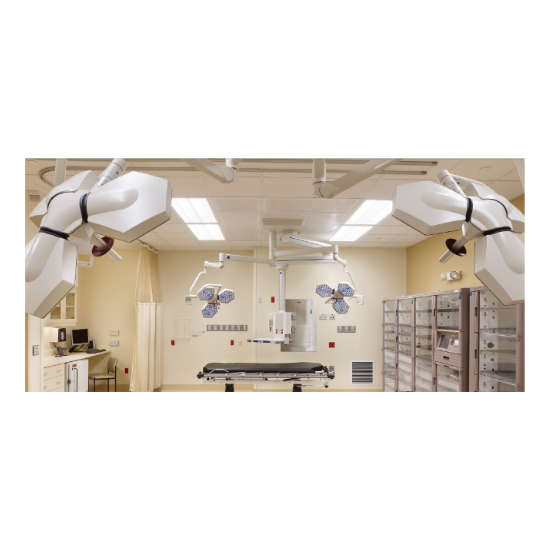

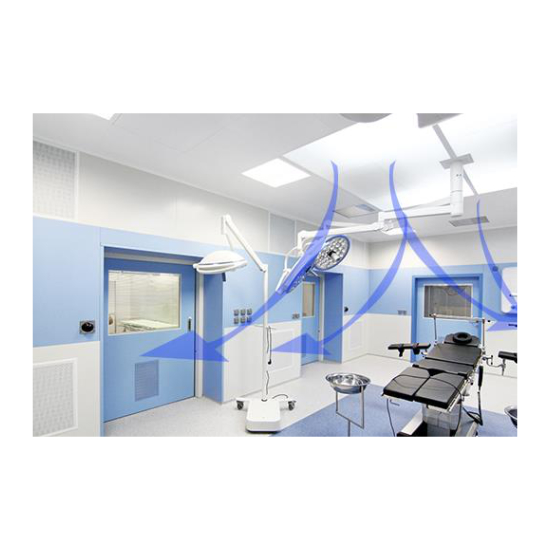

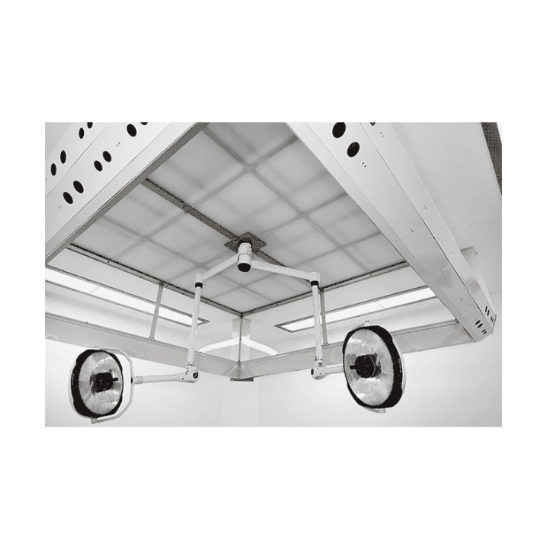

flow into all types of clean rooms in the medical field, for operating theatres and selected
industries, e.g. pharmaceutical, chemistry, etc. The stable parallel flow and the low speed
of the fresh air flow represent the main advantages of the GLF.
A defined low number of particles in the operating zone and in the incoming airflow

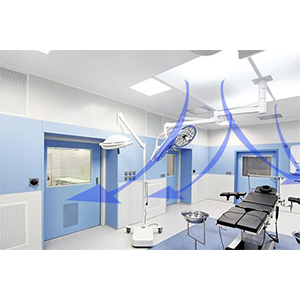

Low air speed in the operating area with a parallel flow (Air Flow in clean rooms exhibits a linear behavior. Air velocity is stable on every section of parallel flow lines 0,22-0,28 m/sn. On the other hand, turbulent air flow shows an unstable behevior. Air flow lines are at random, air velocity is between 0,35 and 0,55 m/sn.)
Production Features:
Simplified installation and ductwork
Ideal for installations with limited space
Fully customizable

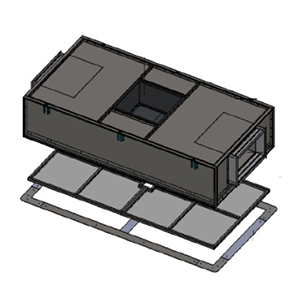

Single large diffuser array

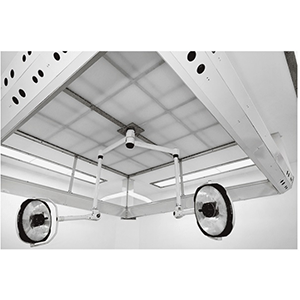

Room side removable HEPA filters
